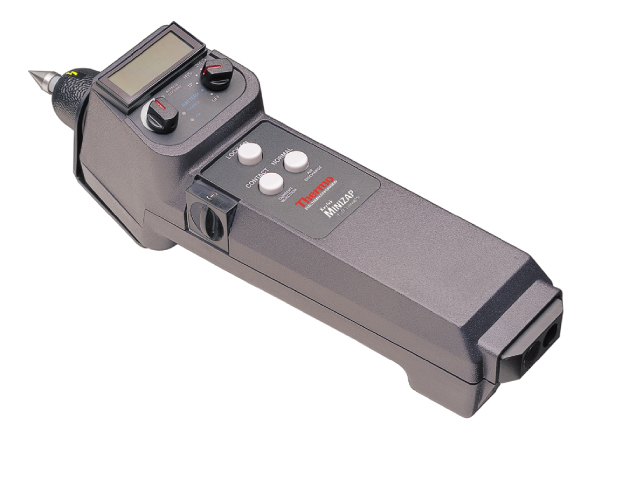

KeyTek MiniZap® ESD Simulator
The KeyTek MiniZap? ESD simulator meets mandatory requirements for company-wide ESD test programs:? High performance in a rugged hand-held unit for the manufacturing floor and the field as well as the lab? Safely & easily generates reliable real world, repeatable & correlatable ESD simulation pulses? Direct contact mode & air discharge testing, plus coupling planes for indirect ESD testsESD Reps & Distributors List
KeyTek MiniZap?

The MiniZap is a battery operated, hand-held 15kV ESD test simulator for performing contact mode and air discharge mode testing. It is the defacto industry standard for ESD testing of products at the system level.

The MiniZap allows users to meet both the 0.7 to 1.0ns rise time requirements of IEC 61000-4-2 as well as perform "real-world" testing with faster rise time waves to determine how a product will really survive in its intended environment.

ESD is considered by many to be the most common cause of failure in microprocessor-based equipment. Therefore, testing of such systems demands clean, reproducible waveforms to avoid producing failures where none would exist in the field. The MiniZap waveforms not only meet the requirements of current standards, but also meets the requirements for waveform purity when verified using a wide bandwidth instrument.

The MiniZap is capable of up to 15kV air and 8.8kV contact testing and offers a wide selection of options that may be purchased now or in the future to meet your testing needs.

The MiniZap performs compliant-level ESD testing in accordance with IEC 61000-4-2 and ANSI C63.16.

The MiniZap has a standard one-year warranty with extended warranty programs available.
